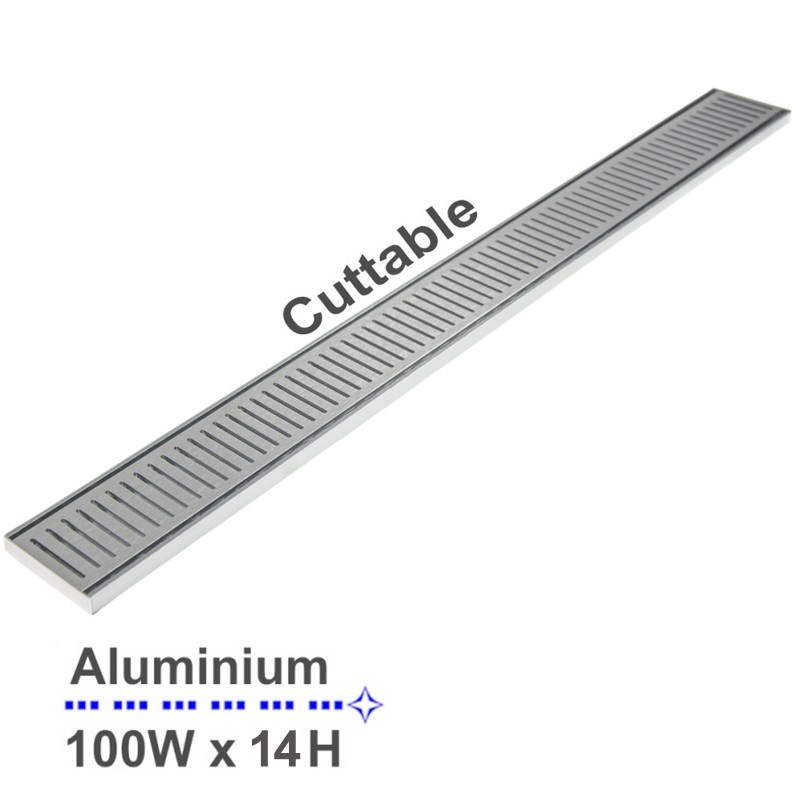

100x100x14mm Chrome Floor Grate

-(300-3000)mm long x 14mm deep x 100mm wide
-Color: Silver
-4 Waste Sizes: 40/50/72/80mm
-UV Stable – All colours come UV stable, meaning they can be installed both indoors or outdoors with no worries that it will discolour or fade!
-Anodised Aluminium – All of grates are triple-bath anodised, giving it a 26-micron protection.
-Easy Roll-Out Feature – easily roll the insert/top tray out for hassle-free cleaning!

Cutting & Assembly Instructions:
For easy cutting of floor grate, we recommend the use of a compound mitre saw fitted with a multi-material cutting blade 80 tooth or more. A compact drill with a bimetal hole would be adequate to drill the hole for the waste outlet.

1.Cut the bottom tray 3mm shorter than desired length to allow end caps to be fitted
2.Cut the top grate 1mm shorter than the bottom tray to allow for easy roll in of top grate and tidy fit
3.Using the suitable size hole saw for your pop waste, drill out the hole at the required position to align with the waste pipe in the floor
4.Insert the end caps into the bottom tray and secure with a bead of silicone on the inside of the tray
5.Place silicone around the lip of the pop waste and secure to the underside of the bottom tray at the recently drilled hole

Please Note:
Our 'Lauxes' shower grates are 'custom cut' to size.  As a 'Special Customer' order, item's cannot be returned once they are cut to your specified size unless there is a manufacturer's fault, defect or stock arrives damaged.  It is important to confirm size before placing your order.  Thank You!
Discrepancy of the length will exist as the grates are manually cut.
Price is to be charged per every 100mm unit
